+86 18539447368Hammer crusher is also called hammer crusher, referred to as hammer breaking machine, is a kind of equipment that breaks materials in the form of impact. Hammer crusher is composed of box, rotor, hammer head, counter lining plate, screen plate, etc., can adjust the grate gap according to user needs, change the discharge particle size
Dear [Crusher] customer, it is very lucky that you can find us in the vast information! Assisted by science and technology .Since its establishment, Henan Maoxin Machinery Equipment Co., Ltd has been deeply involved in the Lithium battery circuit board crushing and recycling equipment field and has tried to provide firm quality Crusher products for Lithium battery circuit board crushing and recycling equipment customers! The following is the relevant information of Crusher product organized by Maoxin for you.
Product details
Hammer crusher is also called hammer crusher, referred to as hammer breaking machine, is a kind of equipment that breaks materials in the form of impact. Hammer crusher is composed of box, rotor, hammer head, counter lining plate, screen plate, etc., can adjust the grate gap according to user needs, change the discharge particle size, to meet the different needs of different users, mainly suitable for lithium battery, circuit board and other metal crushing medium and brittle materials, such as circuit board, lithium battery, cans, aluminum slag and other metal materials in the crushing and fine crushing operation.
Working principle

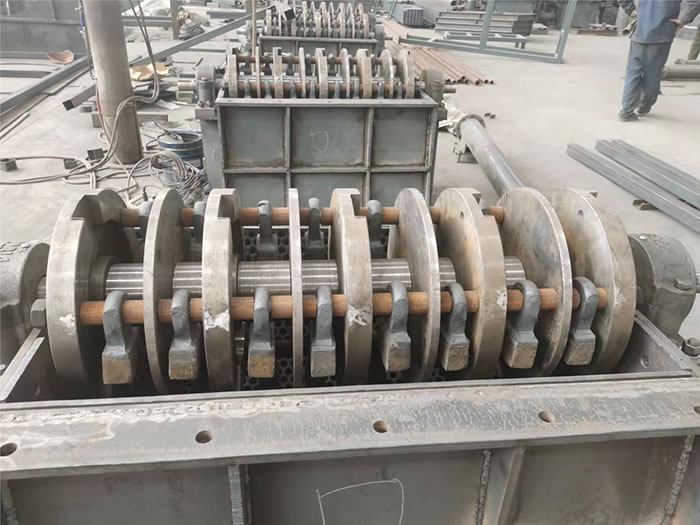

The main working part of the hammer crusher is the rotor with the hammer head. When working, the motor drives the rotor to rotate at high speed in the crushing chamber, and the material is fed into the crushing chamber of the hammer crusher from the upper feeding port, and the material is broken by the impact of the high-speed rotating hammer head and shear tear. In the lower part of the rotor, a screen plate is provided, the crushed material is less than the size of the screen through the screen plate discharge, larger than the size of the screen is blocked in the screen plate to continue to be affected by the hammer and grinding, until the required particle size is broken, through the screen plate discharge. The sealing design solves the problems of dust pollution and body ash leakage in crushing department.
Performance characteristics:
1, hammer head wear-resistant, long service life Hammer crusher hammer head using a new technology to create, no internal cracks, wear resistance, high compressive strength, long service life.
2, the particle size can be adjusted to meet the needs of different operations can be adjusted according to user needs of the grate gap, change the discharge particle size to meet the different needs of different users.
3, seal design, reduce dust hammer crusher box adopts seal design, to solve the problem of dust pollution and body ash leakage in the crushing department.
Technical parameters:
|
Model number |
600 |
800 |
1000 |
1300 |
|
Feed size mm |
Customized according to customer requirements |
|||
|
Discharge size mm |
Custom |
Custom |
Custom |
Custom |
|
Supply capacity kg/h |
300-500 |
500-800 |
800-1000 |
1000-1300 |
|
Motor power kw |
30 |
37 |
45 |
55 |
|
Spindle speed r/min |
1400 |
1100 |
1100 |
980 |
|
Equipment weight |
1200kg |
1500kg |
1800kg |
2200kg |
|
Application field |
Metallurgy, chemical industry, recycling |
|||
|
Crushing procedure |
Intermediate crushing |
|||
