Product Introduction:

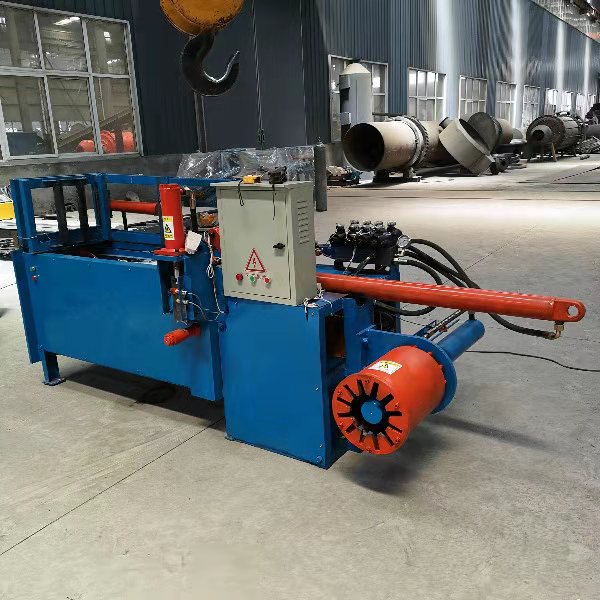

The equipment is mainly composed of hydraulic pump, hydraulic control system, tangential cylinder components, drawline cylinder components, electric control system, for 8 slot stator, 12 slot stator can be disassembled. The hydraulic copper cutting machine in the waste motor disassembly equipment is a kind of environmental protection equipment that cuts the copper wire in the motor stator. The whole equipment adopts hydraulic drive. The waste motor stator is supported on the support column (drum structure) when cutting the wire, and the motor stator is positioned by the cutting copper positioning plate. Through one of the foot switch to control the cutting tool up and down movement and the induction switch to control the upper and lower limit position of the tool to cut the copper coil of the motor stator the working capacity of the equipment is equivalent to the manual dismantling of ten workers.

Process flow:

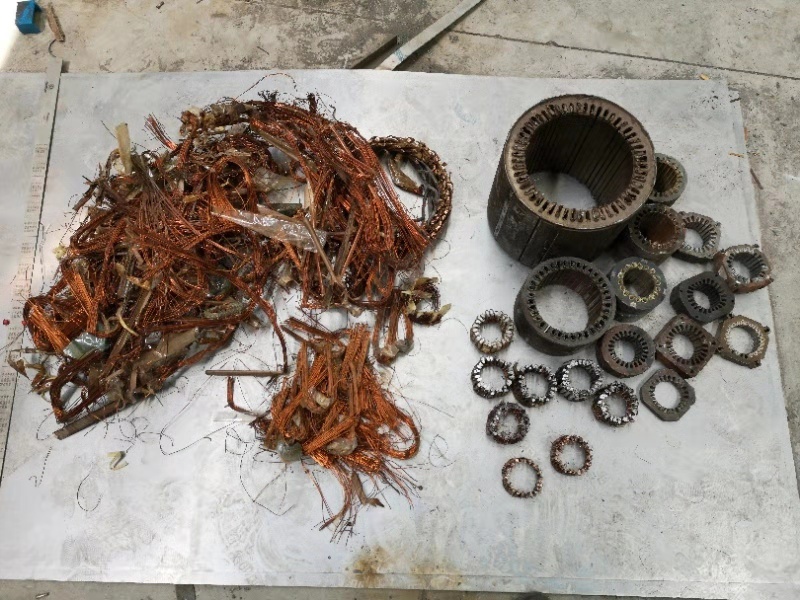

First, the waste motor stator is supported on the support column, and the motor stator is positioned by the cutting copper locating plate. Maoxin Machinery controls the cutting knife through one of the foot switches to cut off the copper coil of the motor stator; Then the cut motor stator is placed on the lifting platform of the copper puller, the motor stator is controlled by manual switch to rise to the copper puller positioning plate, and the motor stator is limited by the copper puller positioning plate, and then the puller is controlled by another foot switch so that the pliers bite the copper coil and pull the copper coil from the stator interior to complete the dismantling of the stator at the highest rate. The user can recover the copper coil and the stator core according to the actual situation.

The motor copper removal machine uses a foot switch to place the motor stator with copper coil after cutting on the lifting platform to turn the lead rod of the puller. Mark between the end cover and the frame for easy resetting during assembly. Waste rotor disassembly recycling copper production line, the company has spot, welcome to visit the trial machine to negotiate. The goods can be delivered by payment of deposit, and the remaining payment can be paid off by delivery. It extends to the periphery of the connecting bolt hole, and the thickened part is provided with a crescent groove for rotating the hammer head. Supply scrap motor stripping copper equipment, air conditioning stripping copper machine, company direct sales, quality assurance.

Specific parameters:
