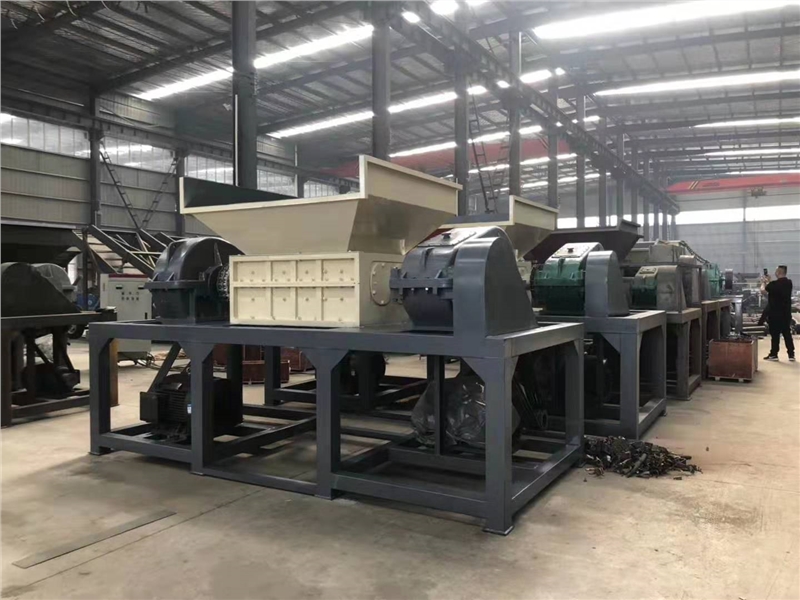

Metal shredder Introduction:

Metal shredder is mainly composed of shredding blade group, bearing box, box bracket, feeding system, power system, electrical control system. It is mainly used for crushing materials to reduce their volume and save space in order to facilitate transportation and recycling.

---

Metal shredder uses:

Metal shredder is a kind of coarse crushing machine, metal shredder is used for shredding all kinds of metal, plastic, rubber, tires, fibers, paper, wood, iron barrels, waste electrical appliances, waste cables, industrial scraps, household waste and other solid or hollow materials, so that its size is smaller.

---

Metal shredder product features:

1, the machine design is reasonable, the body is welded with excellent steel. High strength screw fastening, solid structure.

2, the material of the tool is made of chromium-silicon alloy supply, durable.

3, custom broken pieces uniform, small loss.

4, according to different materials equipped with different materials of the tool, effectively ensure the normal supply.

5, shredder design advanced structure, beautiful appearance, simple operation, stable operation, energy saving, high rate and other advantages.

---

Working principle of metal shredder:

Material through the feeding system into the interior of the shredding box, the box bearing the shredding blade, the material through the shredding blade tearing, extrusion, shearing and other comprehensive effects, shredded into small pieces of material, from the lower part of the box discharge.

---

Metal shredder equipment maintenance:

(1) Regularly check whether the connection of each connection part of the equipment is loose.

(2) Regularly check the current of the main motor of the equipment.

(3) Regularly check the wear of the tool.

---

Metal shredder technical parameters:

Tool specification	Model number	Power kw	Yield T/H	Shear knife （个）	Reduction gear	Apparent dimension m	Weight T
Φ200*20	SG-500	15	0.3-0.6	16	350	1.45*0.87*2.2	1.5
	SG-600	15	0.4-0.8	24	400	1.6*0.87*2.2	2
	SG-800	15*2	0.6-1	32	350*2	2.1*0.87*2.2	4
Φ300*30	SG-900	30*2	0.8-2	18	500*2	3.4*1.25*2.2	6
	SG-1000	30*2	1-3	27	650*2	3.4*1.25*2.2	8.5
	SG-1200	45*2	1.5-4	26	650*2	3.8*1.25*2.2	11
	SG-1500	55*2	2-5	48	750*2	4.4*1.5*2.2	13
Φ400*40	SG-900	30*2	1-2	16	500*2	3.4*1.25*2.2	7
	SG-1000	45*2	1.2-3	20	650*2	3.4*1.2*2.2	9
	SG-1200	45*2	2-5	24	650*2	3.4*1.2*2.2	11
	SG-1500	55*2	3-7	36	750*2	4.4*1.5*2.5	14
