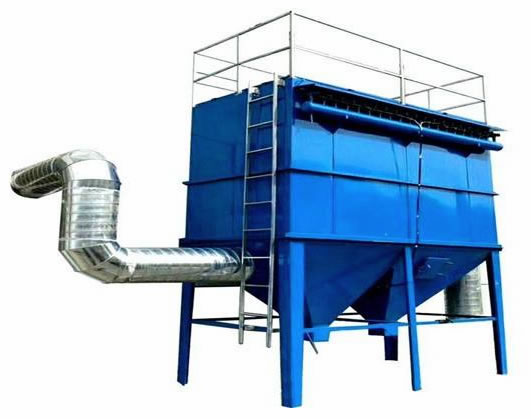

Introduction of dust collector:

Pulse bag dust collector is a new single dust collection unit that improves the original ash discharge system and simplifies the equipment structure on the basis of absorbing the original bag dust collector. The improved equipment has the characteristics of large processing capacity, good purification effect and convenient operation and maintenance. Compared with the mechanical vibration bin top dust collector, it also has the characteristics of low working noise, long service life of filter bag and no mechanical motion wear parts. It is suitable for capturing all kinds of fine dry non-fibrous dust at the top of various powder storages.

How it works:

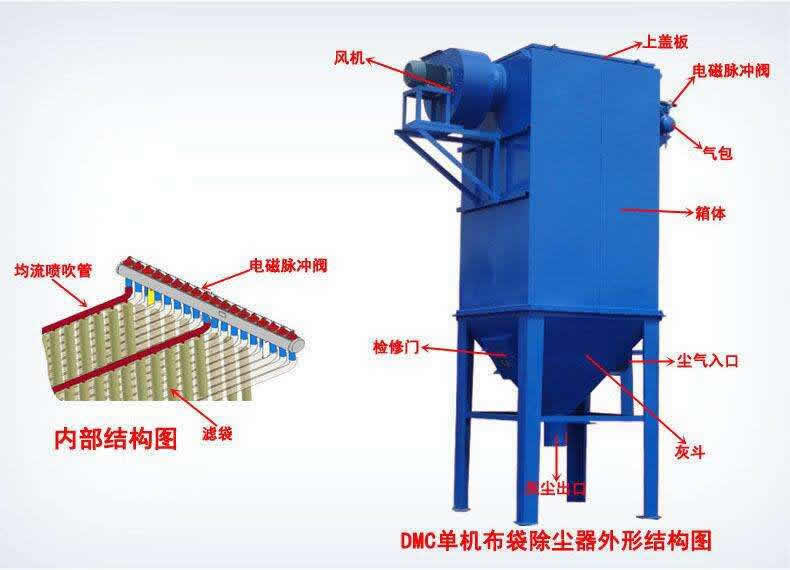

The dust-containing air enters the middle of the dust collector box from the bottom of the dust collector, the dust with coarse particles settles down by its own gravity and falls into the ash bin, and the fine dust is adsorbed on the outer wall of the filter bag through various effects. The purified air filtered by the filter bag enters the upper box through the Venturi tube and is discharged from the outlet. The dust adsorbed on the outer wall of the filter bag accumulates thicker and thicker with the growth of time. The resistance of the dust collector gradually increases, and the amount of gas treated is continuously reduced. In order to keep the dust collector in an effective working state and keep the pressure loss within a certain range, it is necessary to remove the accumulated ash adsorbed on the outside of the bag wall.

The cleaning process is issued by the controller according to the requirements of each electromagnetic pulse valve, open the valve in turn, and spray high-pressure air into each group of bags in order, so that the compressed air in the air bag through the hole of the spray pipe through the Venturi tube into the filter bag (called the primary air), and when the high-speed air jet through the Venturi tube - ejector moment, Surrounding air several times larger than the primary air is induced to enter the bag at the same time (called secondary air). Due to this, the secondary wind formed by a strong reverse air flow opposite to the filter air flow is shot into the bag, so that the filter bag in an instant to achieve a sharp contraction - expansion - contraction, as well as the reverse effect of the air flow, one by one adsorbed in the outside of the bag wall dust off.
